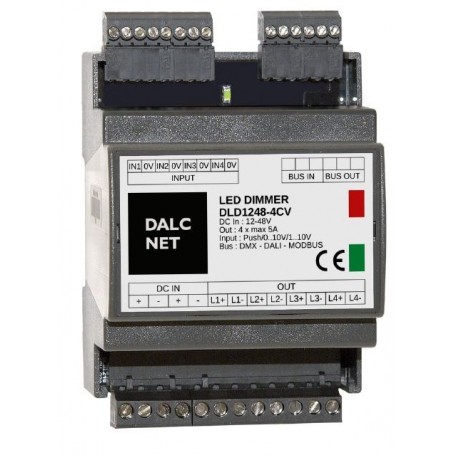

DLD1248-4CV-DMX
Serie DLD1248-4CH-PRO - Led Bus+Dimmer+Fader+Driver 4CH Constant Voltage Input 12-48Vdc, Output 4x5A - 1x20A, Command DMX, 4 N.O. Push Button, 0-10V / 1-10V, Potentiometer
Descrizione
Caratteristiche

Scheda tecnica
Scheda tecnica
- Input Range
- 12-48Vdc
- Max Output Power
- 12-48Vdc
- Channels Output
- 4
- Working Temperature Range
- -40/+60°C
- Protection Grade
- IP10
- Unit Weight
- 32,5 g
- Total Package Weight
- 720 g
- Pieces Per Package
- 4 pcs

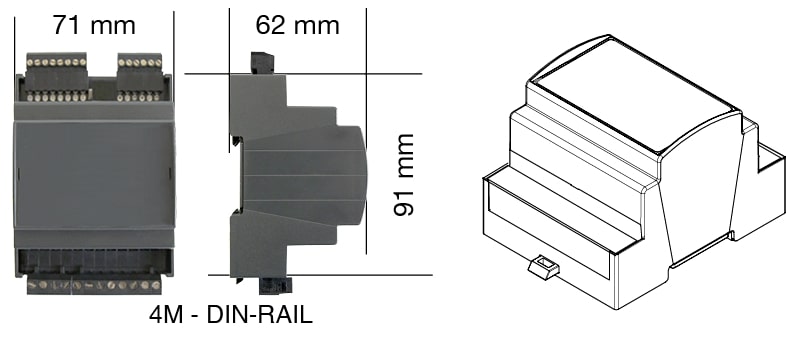

Dimensioni e Ingombri

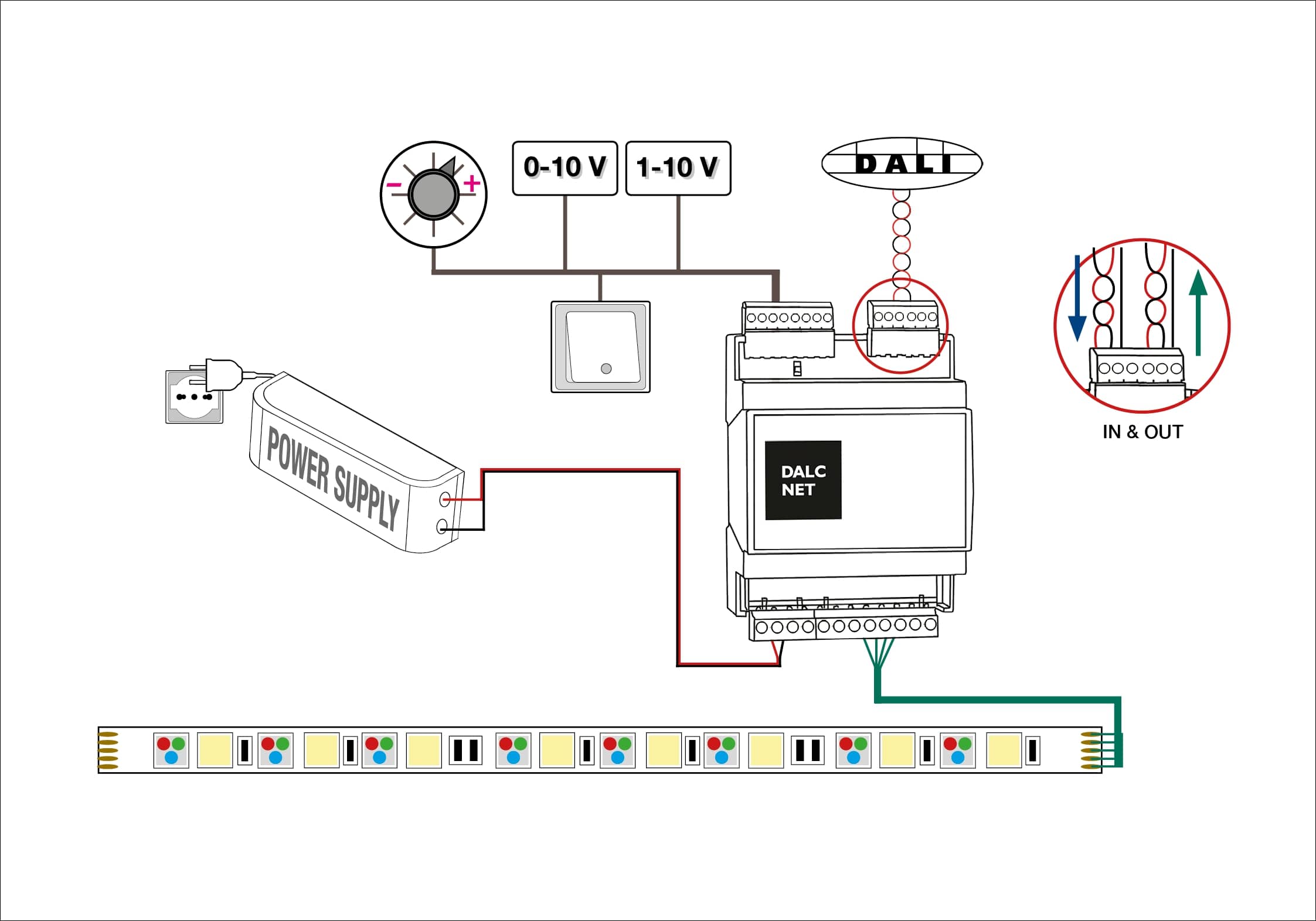

Schema di Collegamento
