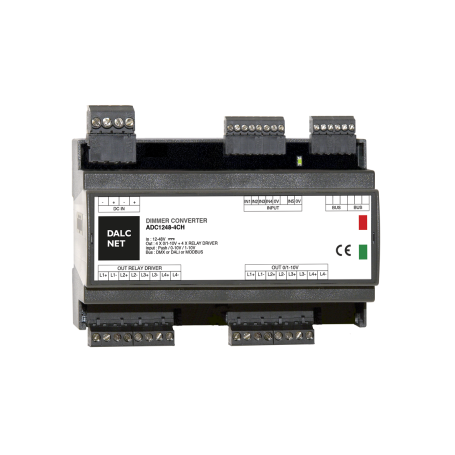

ADC1248-4CH-DALI-PHO1

ADC1248-4CH-DALI

Serie ADC1248-4CH - Dimmer Converter 4 Analog CH, 4 Relay Driver CH, Input 12-24-48Vdc, Output 4x 0-10 / 1-10, 4x Relay Driver, 1xChannel Status LEDs, Command DALI, Input 4x Master 1x, N.O. Push Buttons / 0-10 /1-10 / Potentiometer

Need more informations?

Request quotation

Description

Features

Data sheet

AVAILABLE ON ORDER
Data sheet
Input Range
12-48Vdc
Channels Output
4
Analog Input
0-10V, 1-10V
POTENTIOMETER
PUSH BUTTON
Bus
DALI
Working Temperature Range
-40/+60°C
Unit Weight
170 g
Total Package Weight
240 g
Packaging Dimension
156x124x71mm
Pieces Per Package
1 pcs
Warranty
5 years
Firmware Version
1.2

Attachments

Datasheet

ADC1248-4CH-DALI (ENG)
Download
ADC1248-4CH-DALI (ITA)
Download

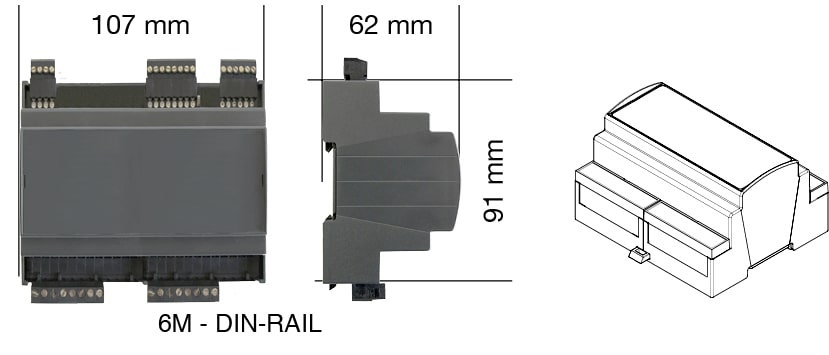

Overall dimensions

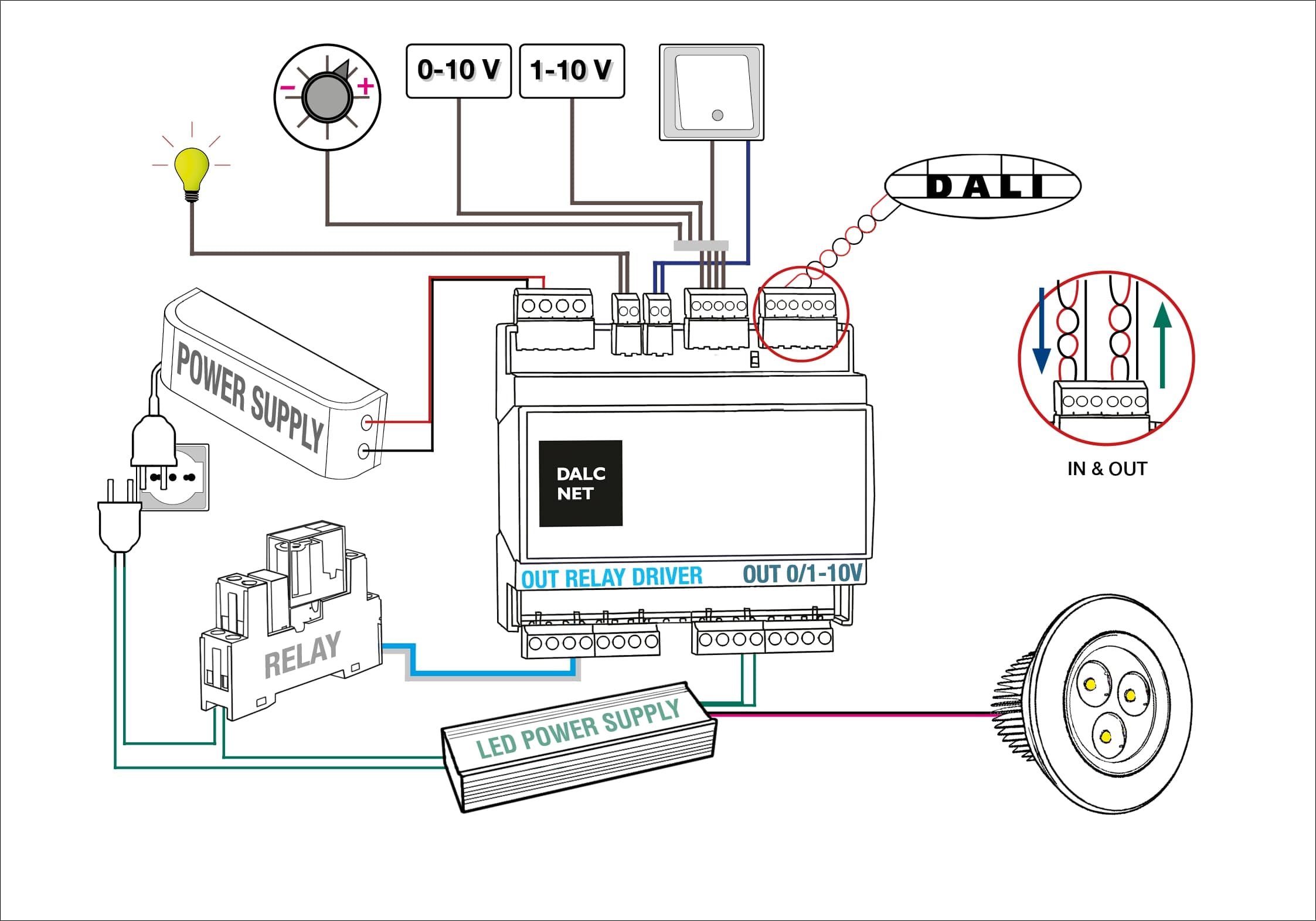

Installations
